News Could It Be A New Align Heli?

Discussion in 'Industry News' started by The Informer, Jun 23, 2016.

By The Informer on Jun 23, 2016 at 9:00 PM
  1. The Informer

    The Informer Administrator

    Joined:
    Aug 23, 2014
    Messages:
    1,341
    Likes Received:
    240

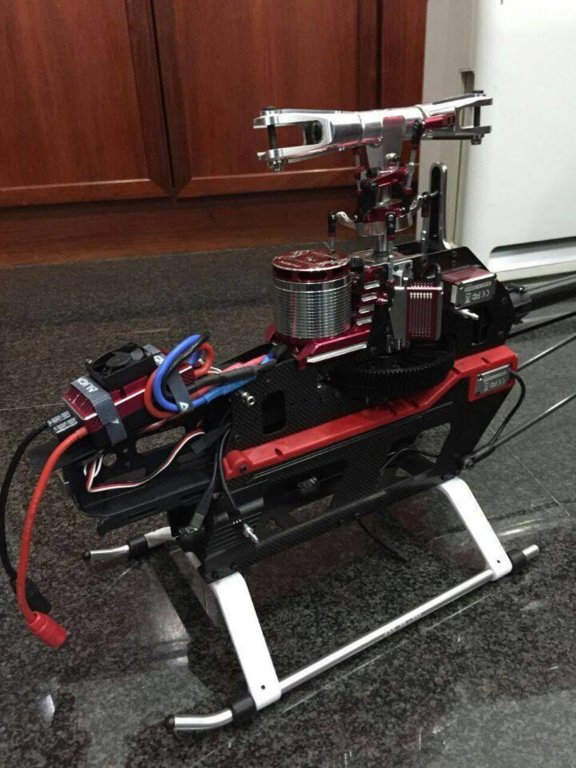

    Images have been seen of a reported new Align helicopter from RevolutionRC website. Looking at the size one would estimate it to be a 700 class helicopter. Note the fatter main gear and the 850mx motor. Its good news for heli enthusiasts that Align is still in the mix...

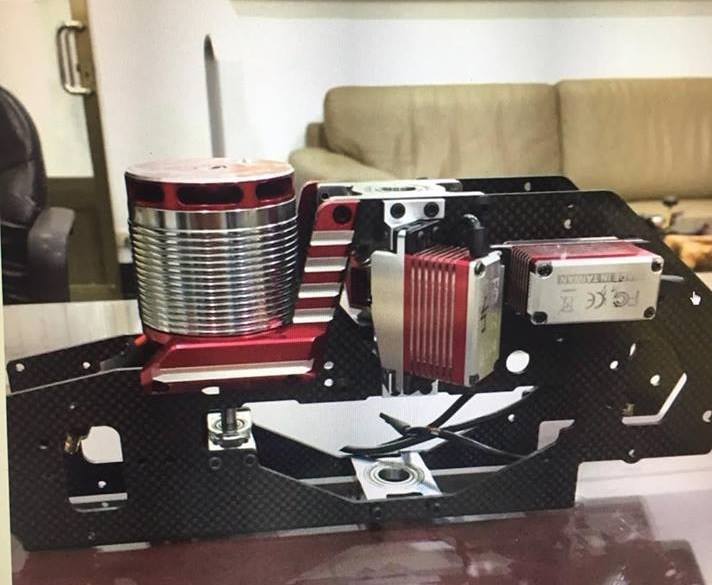

    Interesting to note the large main gear and the tail servo brace. And even more interesting is the two part frame which can be seen below.

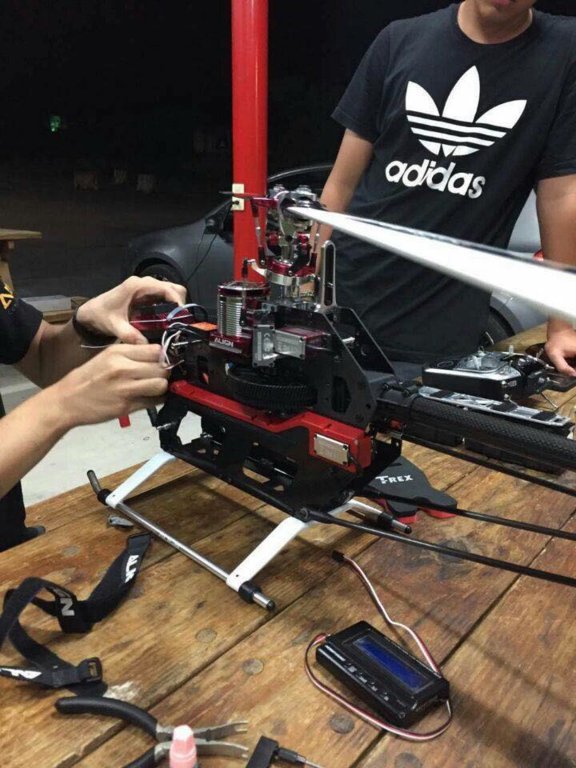

    The head design looks like classic align...



Comments

Discussion in 'Industry News' started by The Informer, Jun 23, 2016.

    1. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,170
      Likes Received:
      990
      Well, they're about due for a new design.......... so everyone can clone it.

    2. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,686
      Likes Received:
      3,077
      So true @Beaver! Now we can have new range of clones as well. lol... it actually happens unfortunately. Would be great if the clone makers could actually make something different. I remember one such attempt and it was a good heli. The black angel....

    3. maingeer

      maingeer Active Member

      Joined:
      Jan 30, 2016
      Messages:
      240
      Likes Received:
      80
      looks good, I wonder if the maingear is delrin. I like the Hobbywing ESC

    4. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,607
      Likes Received:
      1,185
      I like the motor mount.. out of the frame, so it will fit any size.. also the mount looks like it runs up the frame and screws into the bearing blocks... if it does it top and bottom block it will make it super stiff.. not to mention it will help pull a lot of heat out of that motor...

      KDE did thrusted bearing blocks for the 550e with a CF cross that connected to both blocks.. really stiffened the frame... should be an interesting design...

    5. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,686
      Likes Received:
      3,077
      Very good observation re the motor mount. In an egg beater type design (pinion direct to main gear) extra stiff is good! as well as the heatsink...The head and swash still looks like traditional align from here...
