Discussion in 'Mikado' started by 5Fidy, Apr 28, 2014.

By 5Fidy on Apr 28, 2014 at 5:30 PM
  1. 5Fidy

    5Fidy RIP Jason

    Joined:
    Mar 15, 2014
    Messages:
    949
    Likes Received:
    844

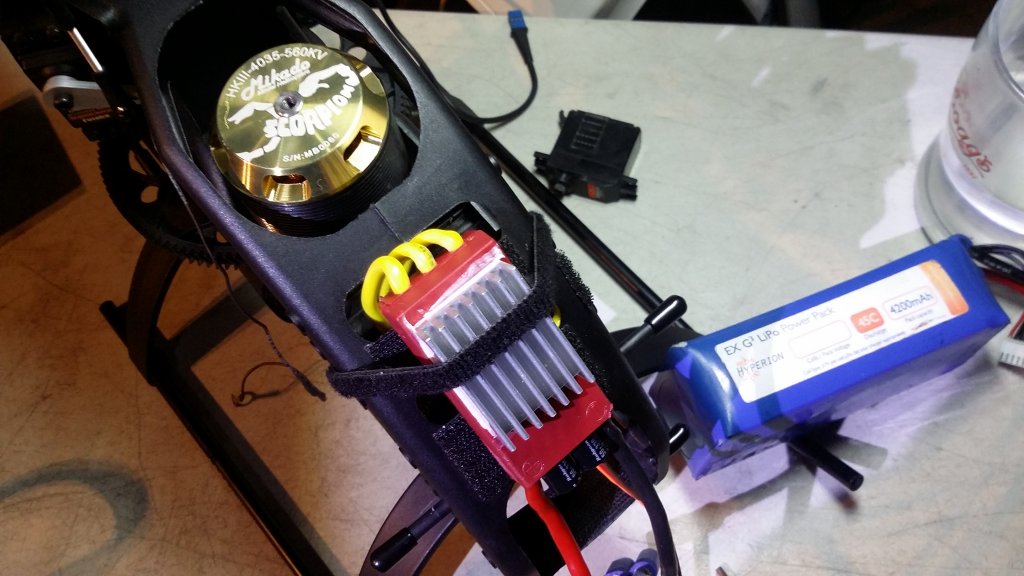

    Another project I'm in the process of creating I have cyclic servos and tail servo
    motor is going to be a scorpion/Mikado motor out of a friends old logo 600
    Just need a speedy might be a CC120 hv need to find out suitable pinion as I'm not sure.


    Here is where I'm at so far looking forward to flying this baby.


Comments

Discussion in 'Mikado' started by 5Fidy, Apr 28, 2014.

    1. mr_squiggle

      mr_squiggle Well-Known Member

      Joined:
      Apr 29, 2014
      Messages:
      582
      Likes Received:
      379
      Well you did ok then didn't you! That's a Quick UK tail with 95s so that's good.
      Check the thickness of the main gear before you fit the counterbearing. The SX one is 13mm thick & the regular one is 11mm if I remember correctly.
      Better cut the motor shaft before you cut loose on the Asahi super dry.......


      Citizen #186

    2. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844
      Thanks for the heads up mate bit hard to fly with a severed finger.
      so all is good you think it's my first logo and it's always good to get
      Info of someone who has had experience with these puppy's

    3. mr_squiggle

      mr_squiggle Well-Known Member

      Joined:
      Apr 29, 2014
      Messages:
      582
      Likes Received:
      379
      Looks good from here! The main gear should have a little big of up/down float so it stays centred on the pinion so don't shim it too tight either.
      Set the pinion position without the counterbearing using short motor bolts then fit the counterbearing. You can do it all together but it's painful & you'll be practicing your swearing.


      Citizen #186

    4. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844
      Thanks for the tips buddy also I don't think I will have to train the motor shaft
      Cause I even noticed in the pic I took the shaft is sticking out about the length of
      the motor mount and also it came out of a friends Logo 600 but was not even spooled
      up... thanks again

    5. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844
      Let's get it on ok they are in just need to rout the wiring the the CGY750


    6. The Dude

      The Dude Well-Known Member

      Joined:
      Mar 4, 2014
      Messages:
      1,070
      Likes Received:
      650
      Cgy.. u running 1.40

      Sent from my GT-N7000 using Tapatalk

    7. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      Look forward to seeing u smack it up on the Queens Birthday weekend fly-in with this bad boy.
      Simon

    8. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844
      It's 1.3 at the moment and yes simon that's what it's for.

    9. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      Remember your orange TX!
      Simon

    10. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      And use the lemon receiver now... that's dsmx

      Citizen#024

    11. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      Just perfect, although this configuration may tempt the BEAST
      Simon

    12. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,095
      Oh SNAP! a Lemon receiver.. @Crash Heligod will be impressed! Then the logo build would definitely fit the category of Extreme!

    13. Min

      Min Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      324
      Likes Received:
      249
      CGY on a logo...

    14. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844

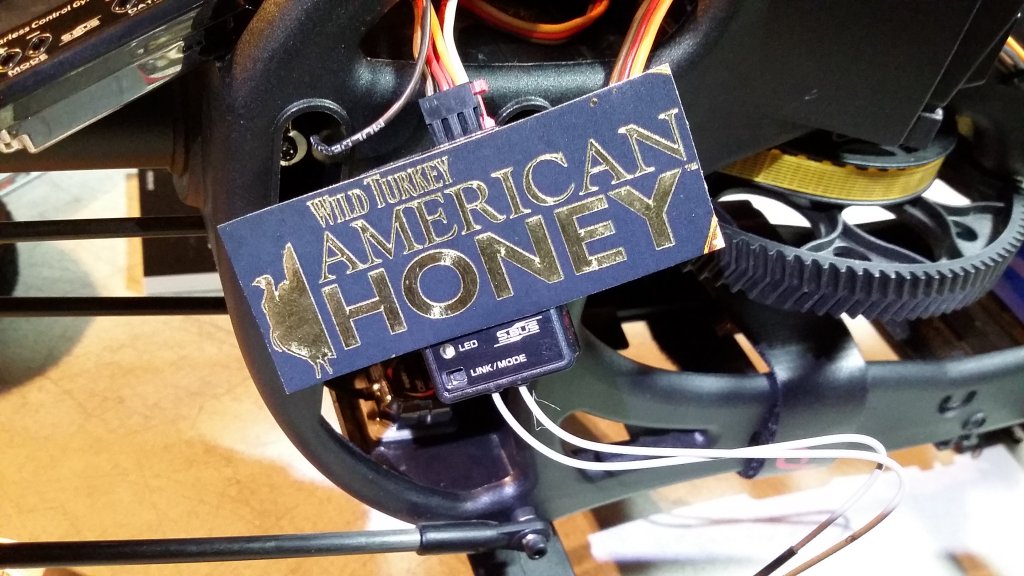

      Ah my friends they were all out of fruity receivers so I got something SAWEEEEEEET.
      They do S.BUS as well. Who would have known....... lol


    15. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      Hey, you use the same FBL's as me! go figure
      Simon

    16. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844

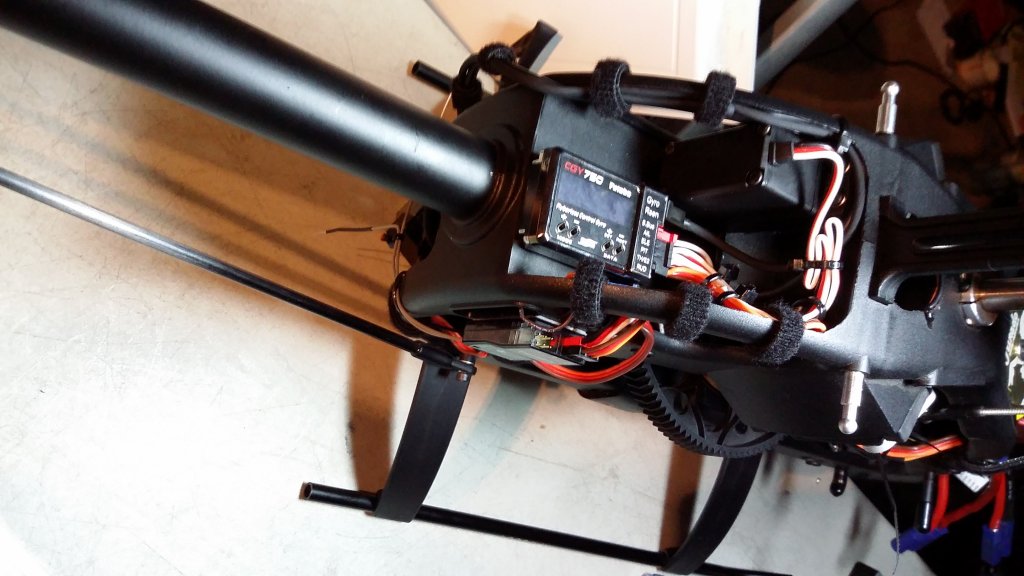

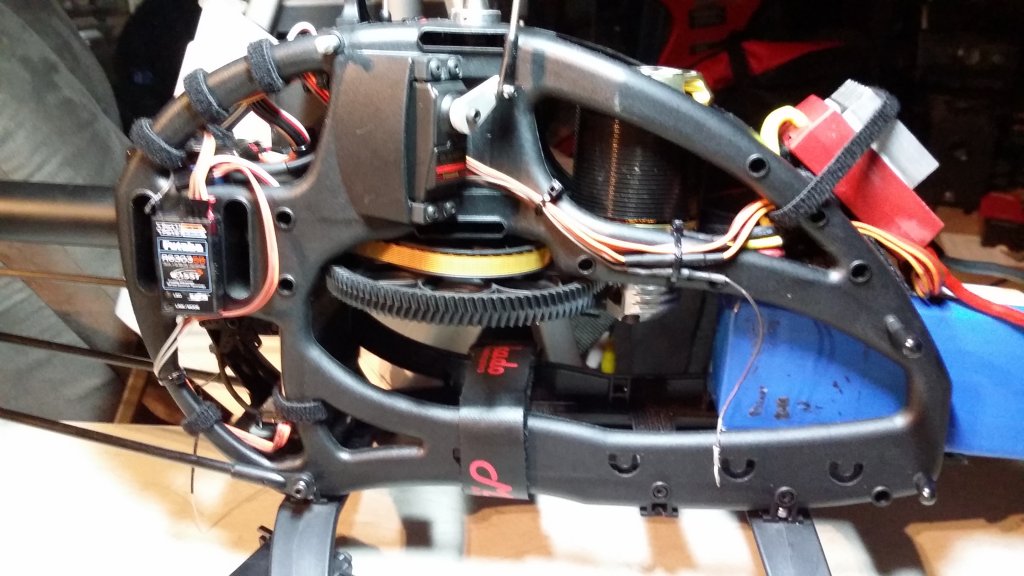

      Nearly there nearly there. Check out that wiring simon

      20140509_220016.jpg 20140509_215848.jpg

    17. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      Now you are just showing off...Very nice, especially considering the liter of Wild Turkey consumed before hand
      Simon

    18. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844
      GOBBLE GOBBLE GOBBLE

    19. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844

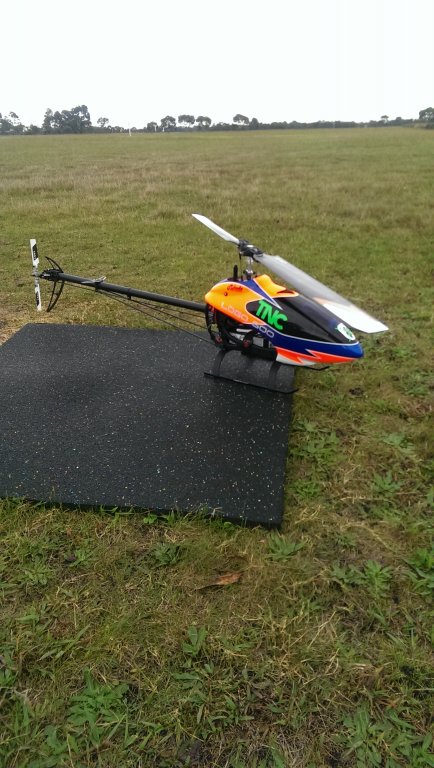

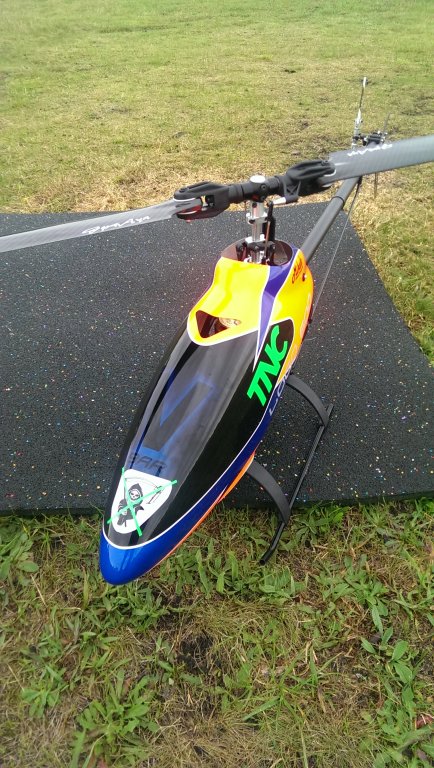

      Well I have to say the maiden flight went perfect the heli is so so quiet. Boy
      You can tell it's light In the air feels so punchy very gracefull. Have to say it comes
      close to the best heli I have ever flown. Very very happy and is only Goin to get
      Better with more tuning of the CGY750. IMAG0187.jpg IMAG0186.jpg IMAG0187.jpg IMAG0186.jpg

    20. The Dude

      The Dude Well-Known Member

      Joined:
      Mar 4, 2014
      Messages:
      1,070
      Likes Received:
      650
      Dam i want that heli...

      Sent from my GT-N7000 using Tapatalk
