From what i have seen so far, everything Lynx builds is of really good quality .. And that's what you pay for .... Quality.


Oxy3 Specifications
Main features
• Heli designed for intense 3D performance:
- ultra rigid frame
- Triple main shaft supports
- Quality injection molded plastics
- Lightweight high visibility fiberglass canopy by Fusuno
- autorotation integrated into main gear hub

• Main rotor
- Semi rigid DFC head for precise performance
- Thrust bearings in main and tail grips
- Oversize hardened spindle
- Ball raced 120° CCPM serviceable swash plate
- Swashplate linkages optimized geometry

• Tail system
- Belt drive tail (low parts count and low crash cost)
- Innovative delta box tail boom with no requirement for boom supports
- Tail optimized to minimize vibration and servo load at high tail speed
- CNC tail pulley with pretension pulley system
- Rigid carbon fiber 3mm diameter tail push rod for the increased tail control

Electronics & Power system
- Battery tray fits a variety of battery packs 3s or 4S 1300/1600mAh max length 75mm
- ESC support suitable for 25 - 40A ESC and more
- Hardened Steel Pinion: 14T included suitable for 3s – 4000 kV motors (optional pinions: 11-12-13)
- Suitable for most micro cyclic and tail servos
- Smart and clean electronic wiring set up

Specifications
- Length: 530mm Height: 175mm Width: 80mm
- Main rotor blade length: 250mm
- Tail blade length: 46mm
- Slant main gear: 140T 0.5 Mod
- Wide head speed range: 3000 for sport flying a to 4500 for insane 3D
- Tail gear ratio 4.214 (14T pulley) for 3800 - 4500rpm (optional 13T pulley available for low head speed 3000-4000 rpm)
- Approximate RTF weight: 580g with 3s 1300mAh battery– suitable for 3.5 minutes of intense 3D at 4000rpm


Kit includes:
- Main and tail blades
- Painted Fusuno canopy
- 13, 14 and 15T pinions (shaft 3,17 mm) for different motor KV and battery set ups

Options
- EOX ultimate series motor 2214 class 4100KV , 435W, suitable for 3s
- Optional standard (non DFC) head
- CNC tail 13T pulley available for low head speed tail holding power

- Optional 3 and 4 blade head (under development)
- Stretch kit up to 280mm main blades (under development)
- F3C style fuselage (under development)



Lynx Heli Innovations Announces a New Division - Oxy Helicopters!

Oxy Helicopters
The Oxy Helicopter project is a natural evolution for Lynx Helicopters. Experience gained over many years of producing high quality upgrades has placed us in a unique position to enter the helicopter market. Our upgrades have been passionately developed by a core team of engineers and designers, delivering several breakthrough products which improved performance, reliability and maintenance costs of many helicopters. We see the market for small helicopters growing. Flybarless systems have allowed flight characteristics to mimic much larger models, and small brushless motors really pump out the power! It is relatively easy to produce a new helicopter. But much more challenging to design one which can be easily repaired and fly well again after a crash. Here at Oxy, were are not only engineers and designers – we are pilots, and have a clear vision what both 3D pilots and sport pilots require in a helicopter!

The Oxy Helicopter Division
Using the feedback gained from the upgrade market, our unique consolidated design and manufacturing practices, access to the best materials, a huge team of enthusiast supporters and test pilots from all over the world, as well as a powerful distributor network, Lynx Heli has decided to meet market demand for high performance helicopters by forming Oxy Helicopters. We will foster open collaboration with dealers and customers in the community to have the best designs possible.

Our Philosophy: Top Performance and Quality First!
There is a market emerging for high performance helicopters in the 180 to 350mm blade size. Customers don’t want a whole package – they want to pick preferred components like FBL system, blades, motors, servos, ESC, etc. Oxy Helicopters will have top-class, explosive performance, fitting for the best 3D pilots in the world. They will also appeal to sport pilots looking for a high quality, versatile product which is simple to build, maintain and set-up, with clean lines and is crash tolerant. The Oxy Helicopter project is the synthesis of years of ideas. We keep our helicopters simple, robust, light, and of a distinctive style

Our First Helicopter - The Oxy 3

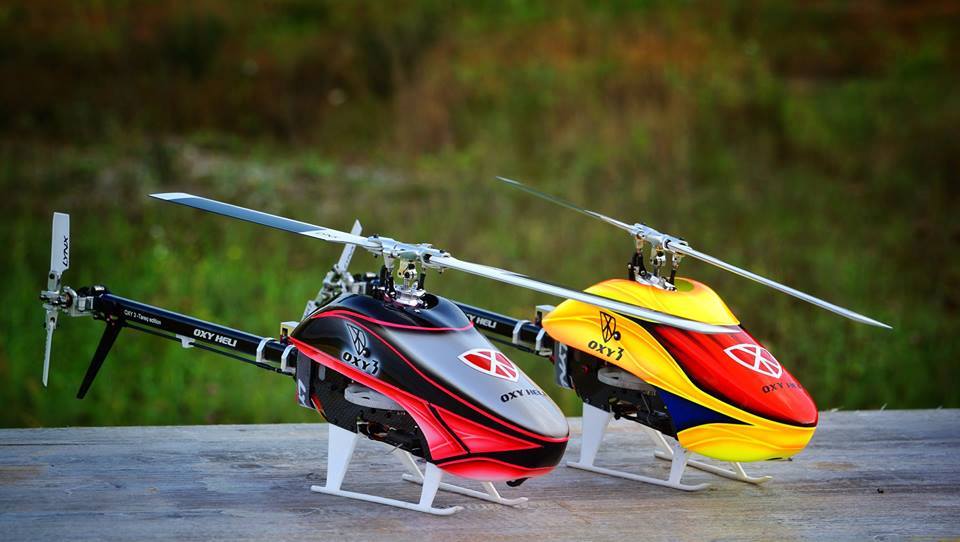

Oxy 3 is the first helicopter in the Oxy Helicopter range. It is a 250 mm blade electric heli, with belt driven tail rotor, suitable for all micro servos. It is designed to handle high rpms (up to 4500), and in the future can grow with a stretch kit up to 280mm blades. Special upgrades will be available to run 3 or 4 blade heads, and a full fuselage to satisfy the requirements of all users. We will be releasing more details soon!



might have to make this my replacement for my troubled torque tube trex 250



Knowing how Lynx make stuff, this should be pretty impresive...
