News Oxy 2 And Oxy 4

Discussion in 'Industry News' started by The Informer, Aug 13, 2016.

By The Informer on Aug 13, 2016 at 11:01 PM
  1. The Informer

    The Informer Administrator

    Joined:
    Aug 23, 2014
    Messages:
    1,379
    Likes Received:
    244

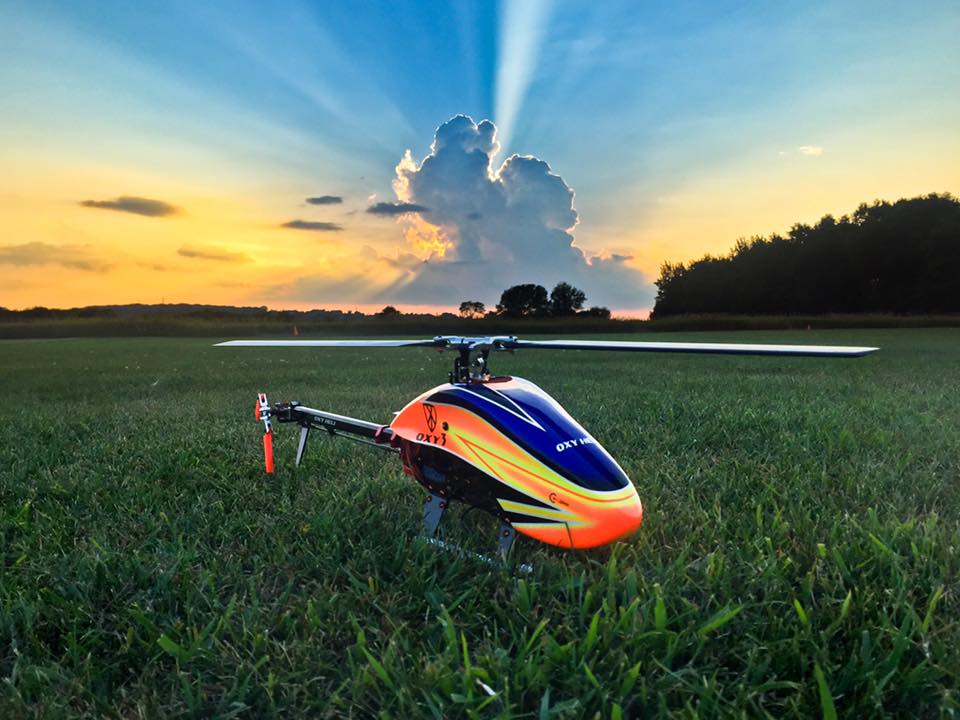

    The informer has found some information from Luca Invernizzi regarding production of the OXY2 and Oxy4. Production fort he OXY2 is starting next week (15th) so see below for more information. 13934985_1762884217261016_3081465170934200379_n.jpg

    From Luca Invernizzi

    Ok guy.. is time to say.. I read a lot and now is my turn.. lol.. during and after ircha I take with my stuff and consultant the waited decision..
    Oxy 2 is the next.. next week we start the production..
    Oxy4 is now delay to February.
    i dont want spend to much time to explain why.. but main reason are the request from you all and the right product for the indoor time..

    Now lets explain some about Oxy2 and stop all confusion here or there..

    Oxy2
    - 190 mm blade on std kit
    - 210 mm blade on stretch kit
    - dfc plastic rod.
    - Belt drive system oxy 3 no one way on std kit optional upgrade one way system.
    Optional tail pulley ratio.
    - Oval tail boom no boom support
    - carbon alu plastic main frame with new servo layout system never saw before.. 120 deg diagram with full direct accessibility to each servo.
    - Lexan ultralight painted canopy optional fiberglass.
    - head speed min 3500 max 6000
    - motors from eox 1611 5100 kv for sport fly up to 1912 3600kv (t rex 250) or max eox 1914 4000 kv in production.
    - esc min 25a max 30a
    - battery 3s 800 / 1000 --- 4s 450 / 600
    - servo cyclic :sub micro servo 180cfx type.. . kst245 mg full metal servo or MKS similar case.. NO MICRO SERVO compatible (t rex 250 or oxy3 for example)
    - servo tail. For sport fly same cyclic for smack 3d different option 180x tail servo 6030 or align savox.. but are heavy.. Tareq and Rasmus choice is the 180x tail servo.. just a note in mine heli because no vibes pass 1000 fly and many crash.
    - fbl u brain u ikon mini brain mini ikon spartan microbeast y280 ..
    - ready to fly weight around 250g depending on electronics..

    We estimate to release it by November possible early..
    Retail price will be around 210 usd for the kit with 2 set of main blade and 2 set of tail blade.

    No need start say about price.. I say.. who need a reliable mini kit with amazing performance.. the oxy 2 is the heli.. for who no need performance maybe other RTF option are better.. and everyone are happy..

    I dont want stole customer from other brand. I want introduce heli performance and feeling not see before.. oxy3 give a signal.. oxy2 I am sure will change the way to consider a mini..

    Is impossible made heli that will made everyone happy.. oxy is expensive products but dont made me ritch.. but happy about the performance.





    Luca Invernizzi
    Lynx Heli
    Oxy Heli
    __________________
    Luca Invernizzi
    Lynx Heli Innovations
    OXY HELI


Comments

Discussion in 'Industry News' started by The Informer, Aug 13, 2016.

  • Tags:
    1. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,176
      Likes Received:
      992
      Very interesting.

    2. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      Can't wait. I have a bata OXY 4 stretch, but don't have a 2 yet.

    3. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47

    4. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,709
      Likes Received:
      3,081
      So tell me how does the oxy4 fly by comparison? what are the main advantages to the oxy4? Some nice flying BTW...

    5. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      This isn't me. This is one of our pilots with the OXY 2.

      OXY 4 is 305 - 325 mm mains and can run up to 360 mm mains with stretch and fit up to a Pulse 1800mah 6s under the canopy.
      My OXY 4 is just like other heli's in it fly's bigger than the OXY 3. In the sky the presence is like my old Goblin 500.

      4 is more for larger area's and more big sky than the 3 or 2.
      2 is for yard flying.

    6. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      I'm manager but not because of my stick skills. It's my management skills. lol
      I'm a big air sport flier. Let the smack to they young guys. lol

    7. WoodyB

      WoodyB New Member

      Joined:
      Jul 7, 2015
      Messages:
      12
      Likes Received:
      13
      I like the comment about the presence in the sky of the Oxy 4. I find the same thing with my Oxy 3. Flies like a much bigger heli but can still be used for smaller areas. I'm only a sports flyer myself.


      Sent from my iPad using Tapatalk

    8. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      Aron did a great job of showing what OXY 2 is capable and when he landed how stable it is.

      At IRCHA, average HS is around 6,000 but you can also lower it also but it is right at home and smooth at the 6,000.

      At 6,000 it sounded like 3,000 and was vib free.

    9. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      OXY 2 NEWS:
      We would like to update everyone interested in a OXY 2.

      We are in production, but due mold maker department running behind for our plastic molds. We will be forced to make a late Jan. release prediction.

      • Like Like x 1
      • Thanks Thanks x 1
      • List
    10. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      [​IMG]

    11. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,709
      Likes Received:
      3,081
      Can you tell me what sort of servos does the oxy2 use @Richard Knapp

    12. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      OXY 2 Factory Edition



      Most updated list of tested OXY 2 FE electronics.
      OXY 2 Factory Edition
      ( This is not finalized. We are still refining the list. )

      190mm mains
      38 and 41mm tails
      Std 11 2mm shaft - many pinions available 2 and 2.5 mm shaft
      main gear 110 T
      Tail gear 16T

      Suggested OXY 2 set up
      (Most used set up in the flight video's. “***” )

      BATTERY
      3s from 800mah to 1000mah

      MOTOR:
      T-Rex 250
      Lynx EOX 5500kv ***
      Any 180CFX or upgrade motor

      TAIL SERVOS:
      tail: E-Flight 180CFX , (If you can find one, Blue Arrow 180 tail ***)
      mks ds 480
      spectrum 180std
      or spectrum 3060
      savox sh-0264mg
      align t rex 250 and 450 t rex tail servo
      corona 919

      CYCLIC SERVOS:
      any servo that fit on 180
      Lynx CNC ***
      KST X08
      KST254
      MKS DS450

      ESC:
      Cc 25-35
      Hw FlyFun 30 ***

      FBL (see note below)
      U-Brain / U-Ikon**
      Mini Brain/ Mini iKon
      Neo
      Spartan
      BeastX

      FBL NOTE: 180 size in U-Brain/Mini iKon: pre sets need very little changing.

    13. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      What everyone is waiting for.


    14. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47


      Pre-order at orders@lynxheli.com

      Ask to be put on pre order list. Kits are being shipped now.

    15. hgnimda

      hgnimda Ray - Administrator Staff Member

      Joined:
      Mar 1, 2014
      Messages:
      610
      Likes Received:
      472
    16. Richard Knapp

      Richard Knapp Active Member

      Joined:
      Sep 21, 2016
      Messages:
      143
      Likes Received:
      47
      From Luca and I:

      Dear Oxy Friends/Pilots:

      Oxy Heli after the success of the Oxy 2 190 FE decided update the Editions Offer.

      The actual Oxy 2 190 FE will be no longer with us. Two new editions will replace it and give more options to the consumers.

      New Oxy 2 Editions will be available : Oxy 2 210 FE and Oxy 2 190 Sport.

      Please see below a quick product presentation and released ETA.

      ETA: Oct-20-2017 - Oxy 2 210 FE will be available

      We decided to "Upgrade" the actual 190 FE with the stretch kit and 210 mm Zeal Carbon Fiber Blade.

      Almost every option in this kit, new color schema Canopy and orange Tail Blades will set this Oxy 2 edition as top of its class.

      Std Retail Price : $209.00 USD
      Introduction Retail Price: $188.00 USD

      ETA: Oct-31-2017 - Oxy 2 190 Sport will be available

      With over 5 months of final testing. We are now ready to release the Oxy 2 190 Sport.

      Featuring same design as the original 190 FE, but using a special technopolymer for some parts. We replaced almost all the Aluminum parts with Inject plastic parts.

      Oxy 2 190 Sport uses the standard Lexan painted canopy and all these changes results in reduced total kit weight of 25g.

      The Oxy 2 190 Sport with its aggressive retail price and low cost spares, becomes the entry level of the Oxy 2 editions.

      We don't think about a "cheap" Oxy Heli, no way!

      We design each parts to satisfy any pilot level.

      This edition can be upgraded or "blinged" with the Std Oxy 2 FE series parts.

      Std Retail Price : $149.00 USD
      Introduction Retail Price: $134.00 USD



      Now we start opening Pre-order for these two editions Oxy2 210 FE and Oxy2 190 Sport. If you are interesting in, don't hesitate to contact our CS via emailorders@lynxheli.com .

      Best regards

      Luca Invernizzi
      C.E.O
      Lynx Heli Innovations - Oxy Heli
