Spektrum Dx18 Led Flashing Blue???

Discussion in 'Spektrum Radios' started by iggy, Apr 1, 2015.

By iggy on Apr 1, 2015 at 4:38 AM
  1. iggy

    iggy Well-Known Member

    Joined:
    Oct 14, 2014
    Messages:
    474
    Likes Received:
    329
    Hi guys,

    Does somebody use the DX18 V1?

    I have bought a used one in realy good condition. The TX is working for shure. Battery seems to be fine. I spent hours and hours on it without charging the pack. Today I wanted to charge it at 7.4V (50%)and it was charging for a few minutes (LED was constantly blue like it should be). But then it started to flash blue..

    It seems not to charge the lipo. There is nothing in the manual about this issue. I tried it several times but its always flashing blue now.

    Can somebody help me out?

    Kind regards,

    iggy


Comments

Discussion in 'Spektrum Radios' started by iggy, Apr 1, 2015.

    1. utrinque

      utrinque Well-Known Member

      Joined:
      Jul 19, 2014
      Messages:
      557
      Likes Received:
      310
    2. iggy

      iggy Well-Known Member

      Joined:
      Oct 14, 2014
      Messages:
      474
      Likes Received:
      329
      Thanks man. But if its taking just little sipps while flashing blue.. Then it should be nearly full but its on 50%..

      On my DX9 it was constantly blue till it turned off and the pack was full.

    3. Busher

      Busher New Member

      Joined:
      Dec 8, 2014
      Messages:
      33
      Likes Received:
      22
      If the in built charger is taking sips and showing nearly charged but you are showing only 50% charge, then....
      Check you have the correct battery type and capacity set in your radio, if it allows capacity that is I can't remember. If the battery settings are correct then I would start to suspect the battery or its charge control circuit.
      There is a good chance when the batt gets a few years old the IR of the batt rises, this has a knock on effect of raising the terminal voltage of the batt. If this happens and the charger is looking at terminal voltage the charging circuit will switch off the charger thinking it has fully charged the batt. After switching the radio on for a short period the battery would quickly deplete showing less capacity than full charge.
      Might be time for a new batt, I also presume your using a power supply that comes with the set and not a standard radio charger, spectrums have a universal power supply these days not a wall wart charger.
      Just a few thoughts that might help

    4. iggy

      iggy Well-Known Member

      Joined:
      Oct 14, 2014
      Messages:
      474
      Likes Received:
      329
      Thanks man. I also think that its up to the pack itself. Therefore I will order a new one. Its 40 bucks so..

      But Im a bit disappointed by HH Germany. No answer within one week.

      Kind regards,

    5. iggy

      iggy Well-Known Member

      Joined:
      Oct 14, 2014
      Messages:
      474
      Likes Received:
      329

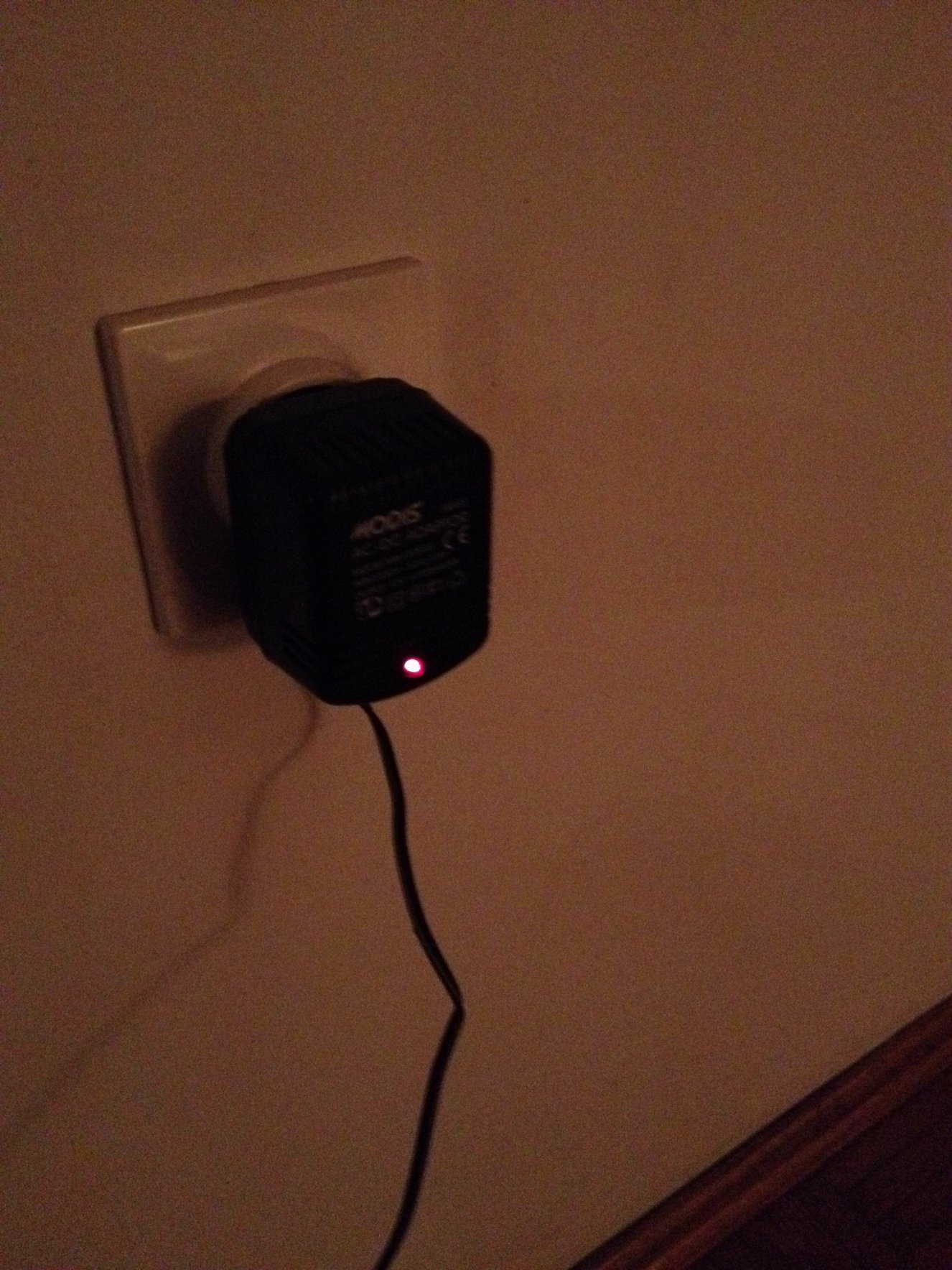

      Problem solved. I want to let you know the solution. It was up to the wall wart. We measured the voltage. It wasnt constant anymore. It gave 13-14 volts up and down all the time thats why the LED was flashing blue and charged only to 7.5V very slow. Soldered the original Jack to a 12V 0.5 amps wall wart and thats it. I almost ordered a new lipo for my DX18. Almost! :)


    6. jackperez

      jackperez New Member

      Joined:
      Apr 22, 2015
      Messages:
      1
      Likes Received:
      2
      iggy, well you’re absolutely correct. I was reading this thread and I was thinking to myself, how could this be? The only possible explanation I had in mind was that you’re charger has betrayed you. Anyways, since your charger wasn’t being supplied a constant voltage, the voltage regulator wasn’t able to function properly. These issues can be avoided while designing the charger by adding an extra layer of noise filtration but well, you solved it anyhow so I guess we’re good.

      pcb assembly

      Last edited: Apr 29, 2015
    7. viya0414

      viya0414 New Member

      Joined:
      Nov 30, 2017
      Messages:
      1
      Likes Received:
      0
      The only possible explanation I had in mind was that you’re charger has betrayed you.


      PCBA
