Info Xnova Review By Radar Flight School

Discussion in 'The Chat Room' started by Radar, May 13, 2014.

By Radar on May 13, 2014 at 10:27 PM
  1. Radar

    Radar Moderator Staff Member

    Joined:
    Mar 4, 2014
    Messages:
    353
    Likes Received:
    282
    Hi Guys,
    I have been contacted by the guys from Xnova Motors and they are sending me one of there motors for RFS to review. From what I've seen so far they look pretty good but time will tell. I'll keep you all updated with where it is at but I am going to try and get a few good pilots to give it run and push it to it's limits. If you want more info on the motors take a look at there link. CLICK HERE!



Comments

Discussion in 'The Chat Room' started by Radar, May 13, 2014.

    1. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,095
      Efficiency and power is the key word for motors. Even better is power for free! If only. These motors look very sexy...

    2. ZEN RC

      ZEN RC Well-Known Member

      Joined:
      May 8, 2014
      Messages:
      312
      Likes Received:
      364
      Will be really interested to see what you think of these.

    3. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      That 4020 1000kv I run in my HD if frikken nuts silly power

    4. Crash Heligod

      Crash Heligod Moderator Staff Member

      Joined:
      Mar 10, 2014
      Messages:
      854
      Likes Received:
      731
      @feral you can never have too much power!

    5. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      When the HD Cell 700 arrives it will be getting that 14000 watt XTS monster

    6. The Dude

      The Dude Well-Known Member

      Joined:
      Mar 4, 2014
      Messages:
      1,070
      Likes Received:
      650
      Looking forward to hearing about this.. Do they have a 450 size motor... If nothing else they look kewl..

    7. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      There will be a 6s 450 size motor soon

    8. Radar

      Radar Moderator Staff Member

      Joined:
      Mar 4, 2014
      Messages:
      353
      Likes Received:
      282
      I am informed that 45's have a Y winding and thick wires.
      The stator is very specially designed. It has coolingslots, so airflow can pass .
      3 bearings.
      XTS have maybe the lowest inductivity righnow avaiable on the marked.
      All XNOVA motors are hand wound 100%.. also the 40** series

      It's in the post so I will put up some photo's when it arrives. It sounds good but will have to wait and see.......................

    9. Jeff_Bradley

      Jeff_Bradley Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      778
      Likes Received:
      611
      I wonder who are the lucky are to have a go of these.

    10. Radar

      Radar Moderator Staff Member

      Joined:
      Mar 4, 2014
      Messages:
      353
      Likes Received:
      282
      Well look what turned up at the door today, the motor from Xnova. So I have taken a few pictures before I install it into my Synergy E7se. The motor that I have in my heli at the moment is very on par with this motor so it should be a good comparison.

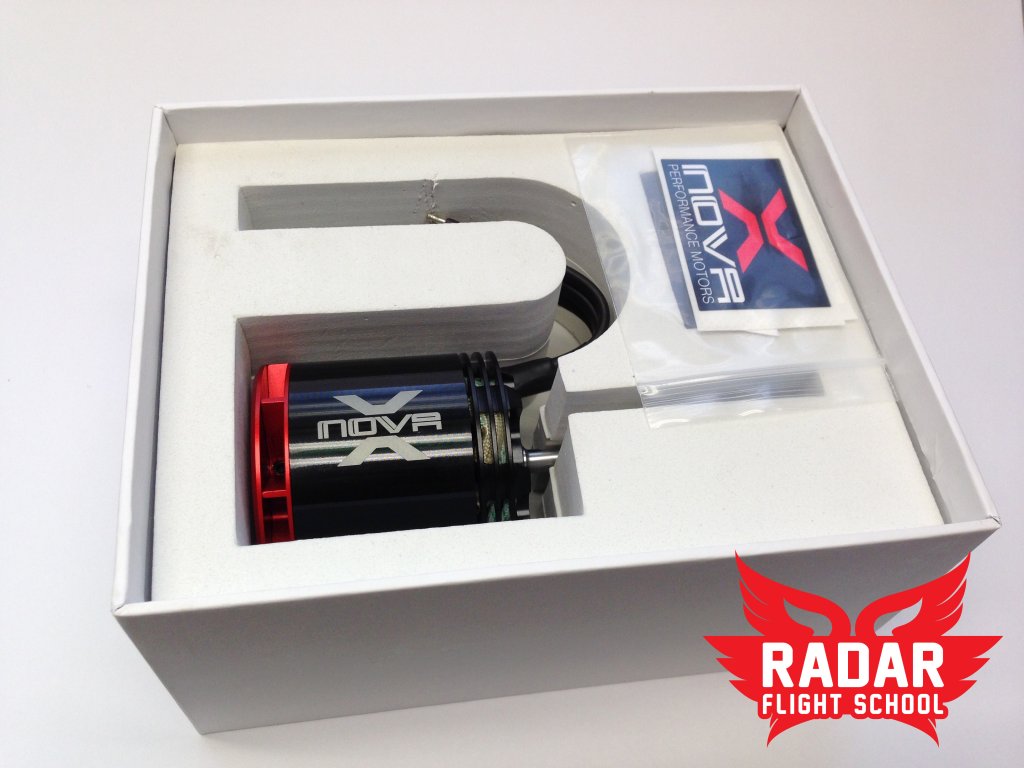

      The box is pretty heavy duty so I think your motor will arrive safely

      Comes neatly packaged and also comes with stickers YES!

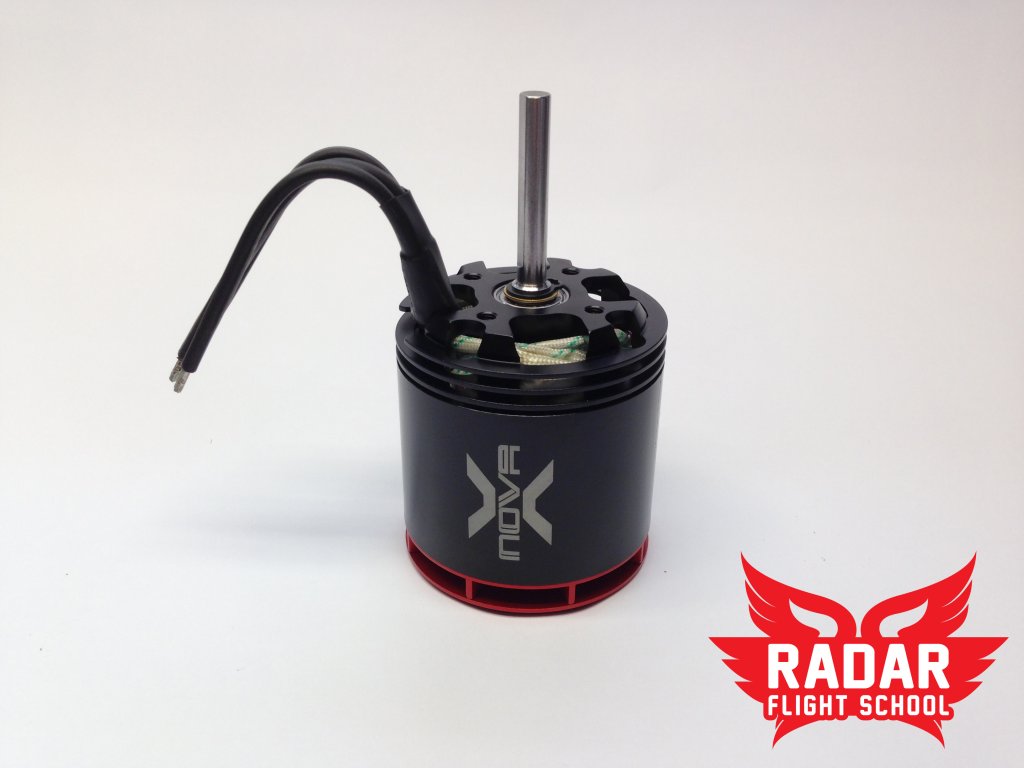

      Comes in a variety of shaft lengths and sizes

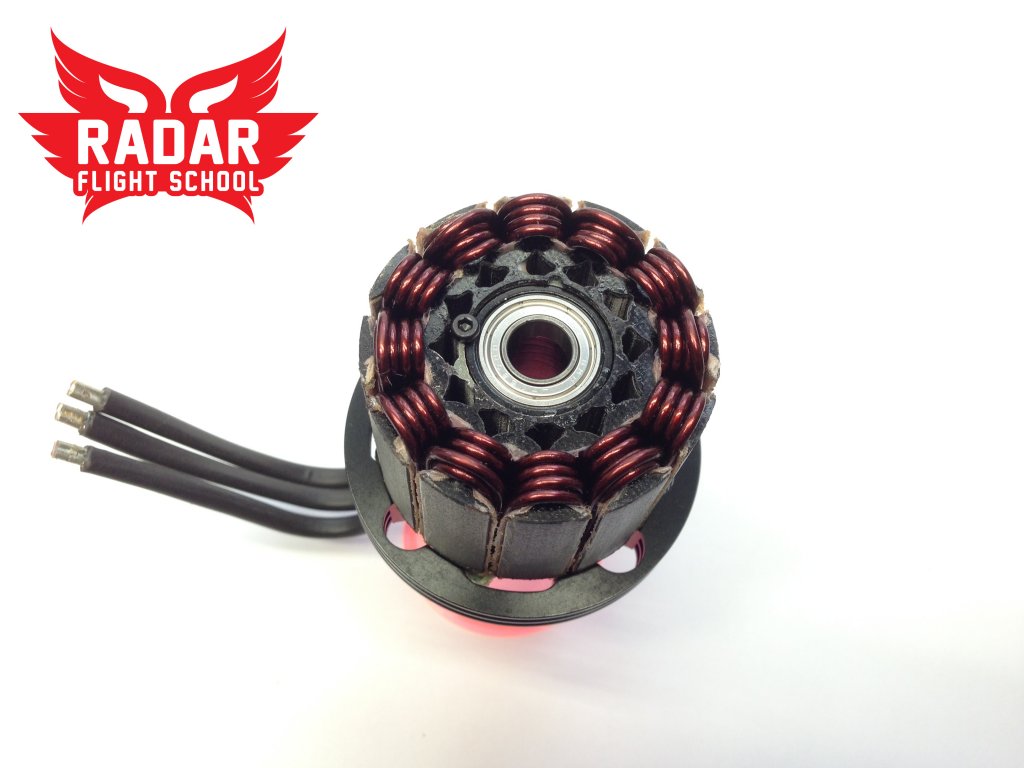

      Windings are nice and the stater has a bit of heat sink at the base

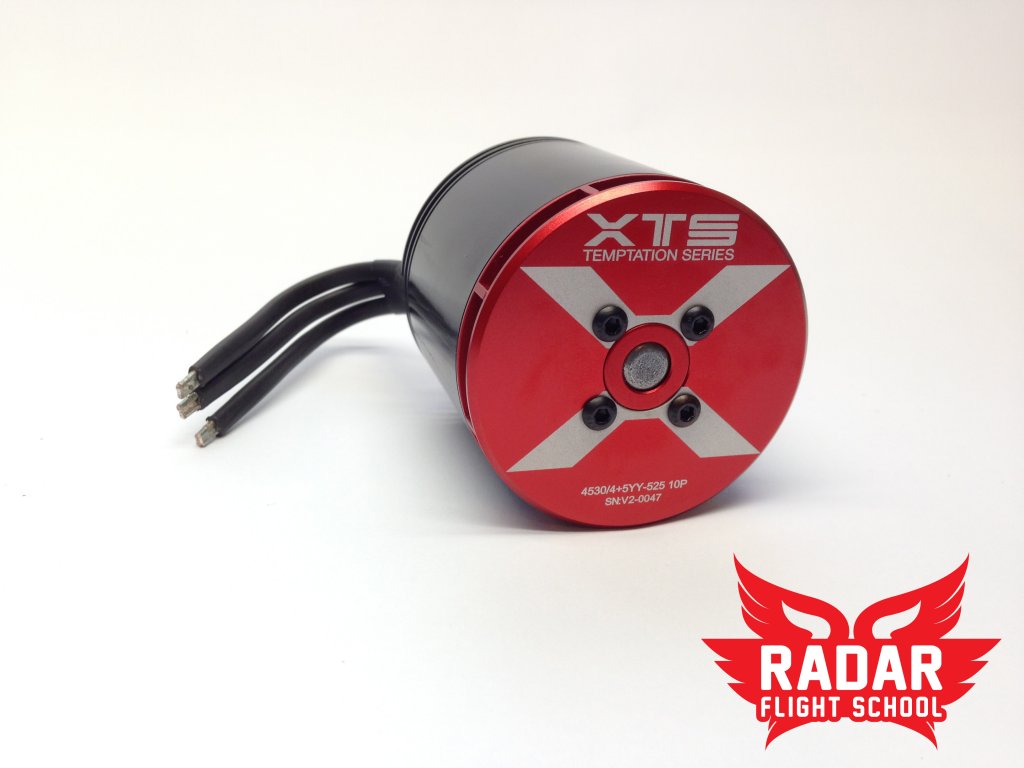

      Most of the information you need to know when setting up your ESC is stamped on the top of the motor. NICE!

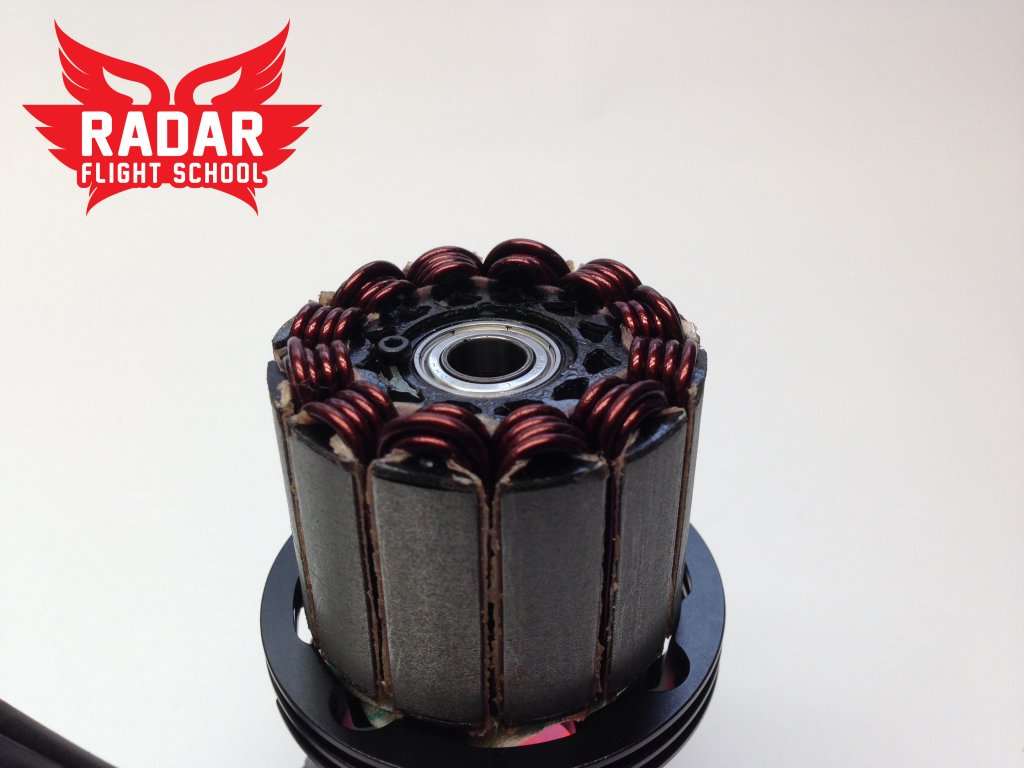

      The stater is custom made with cooling vents as seen in this picture and also balanced

      Nice tick windings for what I hope to be great power

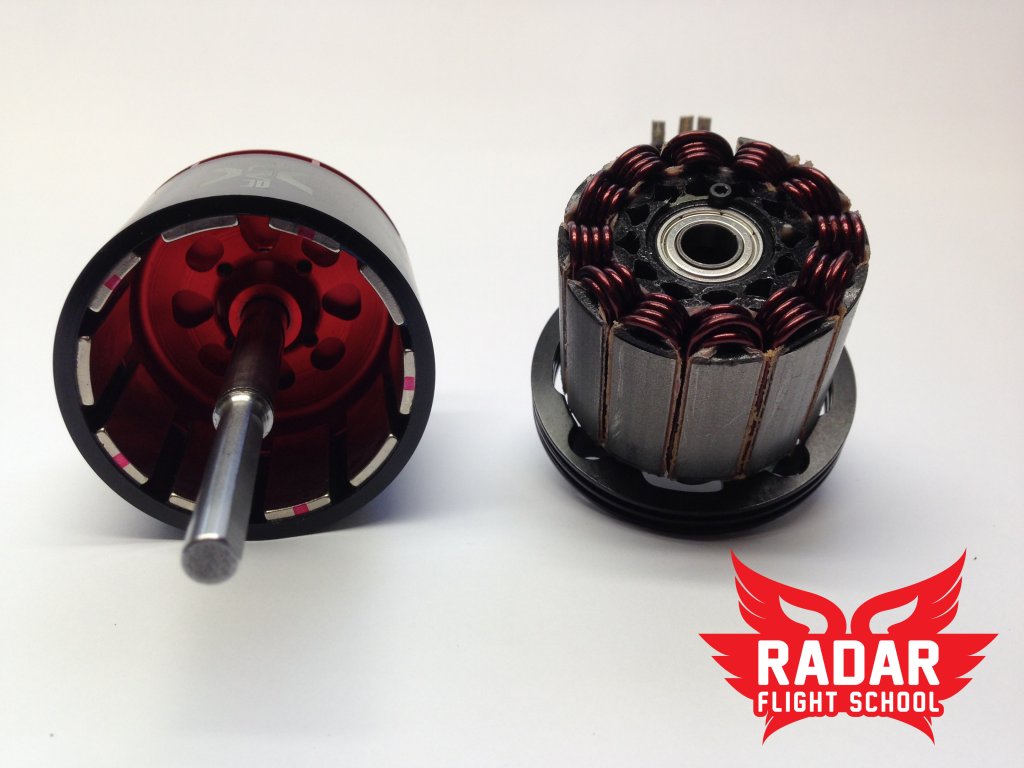

      Very well machined and the out runner has a custom air intake to push it through the stater

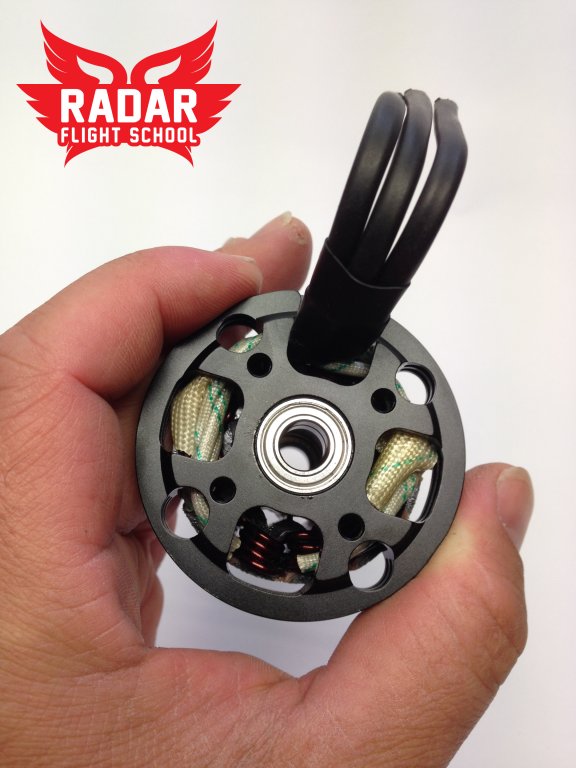

      Triple bearings to help with the load

      Hopping to get it installed into my heli this weekend and get some flights in, will keep you all up dated...............

    11. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      I hope your main gear is up to it radar

    12. MadBird

      MadBird Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      564
      Likes Received:
      421
      Looking forward to the review Radar. I'm hoping to maiden mine in the E7SE this weekend.


      Sent from my Electronic Appendage!

    13. The Dude

      The Dude Well-Known Member

      Joined:
      Mar 4, 2014
      Messages:
      1,070
      Likes Received:
      650
      Wow, nice looking motors, trip bearings, nice.. I also like the flat motor wires..

    14. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844
      Any news on this sick ass looking motors mate?

    15. Radar

      Radar Moderator Staff Member

      Joined:
      Mar 4, 2014
      Messages:
      353
      Likes Received:
      282
      Hey there crazy guy. I am hoping to fly it this weekend at AFF and will report back straight away dude. I have been flying heaps and just got me Trex700 DFC going as well so can't wait to fly again.

    16. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844
      Wicked can't wait for the masters opinion. Lol

    17. timmy

      timmy Member

      Joined:
      Mar 14, 2014
      Messages:
      31
      Likes Received:
      22
      Ah so you got a YY wind. Which I believe is the same winding pattern as a Scorpion Ultimate series. What motor do you have in this heli already Radar? Would be good to know what you're comparing it against.

    18. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,095
      How is the YY wind better @timmy? I have a scorpion 4530 LE in my gobby with a kosmic 200. It seems pretty powerful but it punches the guts out of my batteries.

    19. timmy

      timmy Member

      Joined:
      Mar 14, 2014
      Messages:
      31
      Likes Received:
      22
      I think it is that the YY wind is more efficient with only slightly less power than the Delta wind. I'm no scientist though, I'm just repeating what I've been told by those more in the know.
